Finding a location to mount a GPS can be a challenge in the limited cockpit space available on a motorcycle, quad or buggy. To help solve this issue the team at AltRider has designed bar-mounted adapter to give you more choices when looking to mount a GPS. The AltRider Universal GPS Mount Adapter provides options for mounting to various size bars giving you the flexibility to mount a GPS in the most convenient position for you.
- Made from 6061 aircraft grade billet aluminum
- Stainless steel hardware included

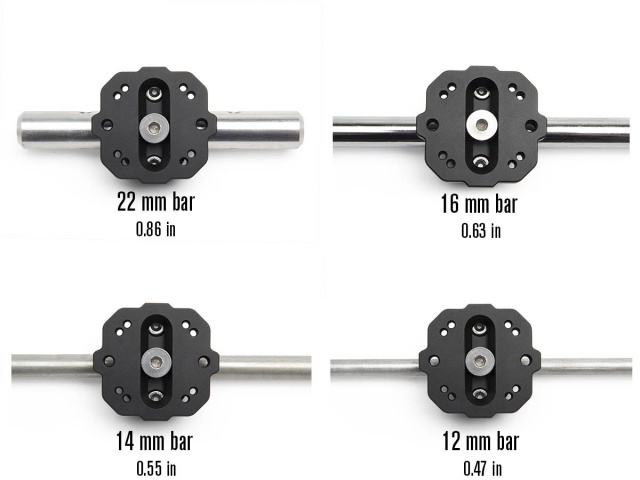

- Fits a wide range of bar diameters (12 mm, 14 mm, 16 mm and 22 mm)
- Anodized black finish

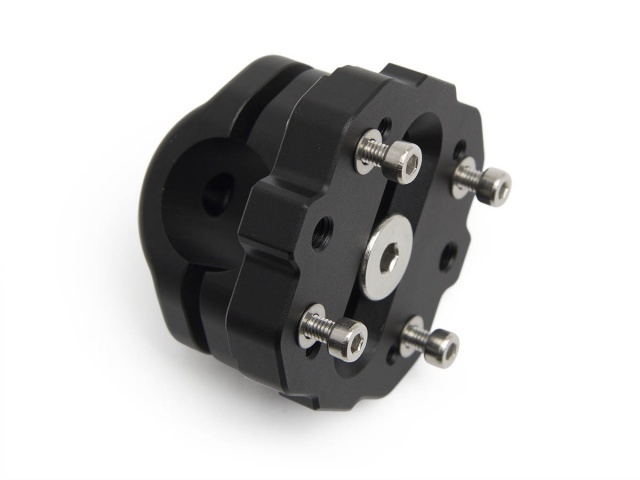

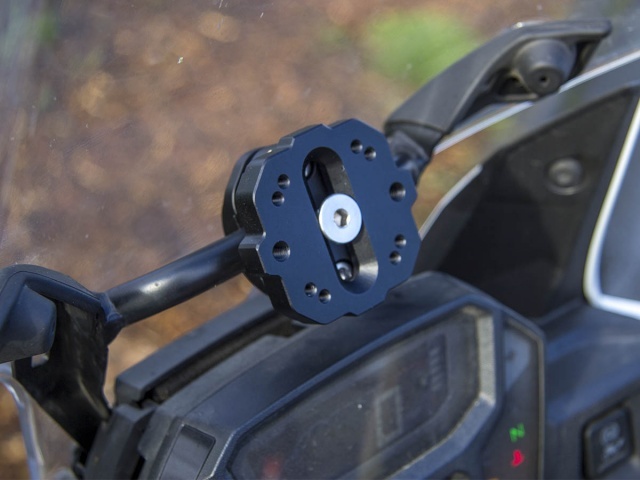

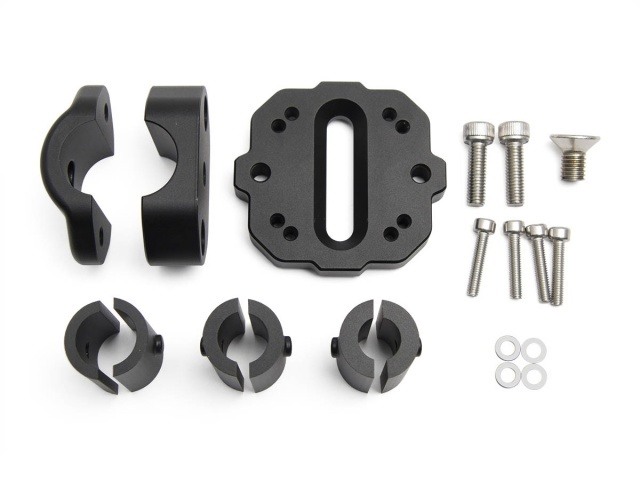

The AltRider Universal GPS Mount Adapter is CNC machined from 6061 aircraft grade billet aluminum, bead blasted and then anodized black for a premium matte finish. The Universal GPS Mount Adapter mounts, using included stainless steel hardware, to the support or brace bars commonly located atop the triple tree, near the windscreen, or wherever you can safely and creatively find the most benefit. The additional provided stamped 6061 aluminum adapter shims, in three sizes, allows the operator to configure the product for wide range of bar diameters (12 mm, 14 mm, 16 mm and 22 mm) right out of the box.
The AltRider Universal GPS Mount Adapter features mounting points compatible with GPS mounts using a 2- or 4-hole AMPS pattern, including RAM Mounts and Garmin Zumo cradles. GPS mounts can be attached to the GPS Mount Adapter in two orientations (horizontal and vertical) and the adapter is compatible with Ram Ball A, B, C sizes. Note a 2-hole AMPS pattern only works on horizontal application.

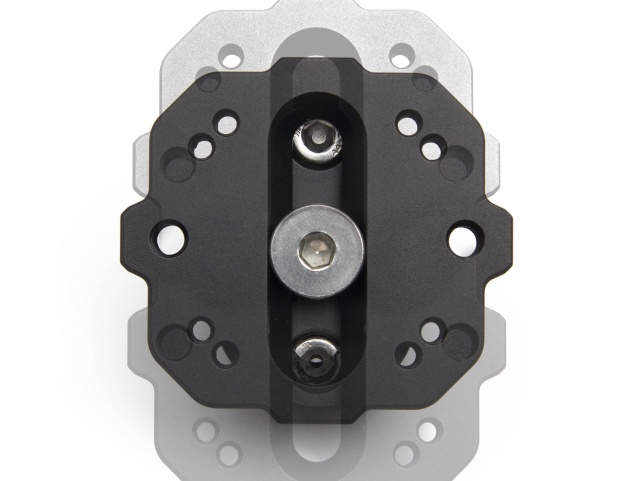

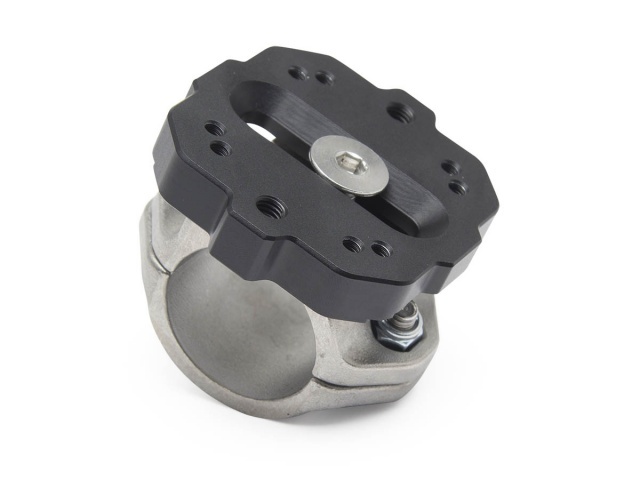

The AltRider Universal GPS Mount Adapter is also compatible with the AltRider cast stainless steel clamps, this allows for adapting to 25.4 mm (1 inch) and 31.75 mm (1.25 inch) bar diameters on your bike, quad, buggy or side-by-side. A unique slot design allows for 31.75 mm (1.25 inches) of additional adjustability so you can get the location just right.
- Compatible with GPS mounts using a 2- or 4-hole AMPS pattern, including RAM Mounts and Garmin Zumo cradles

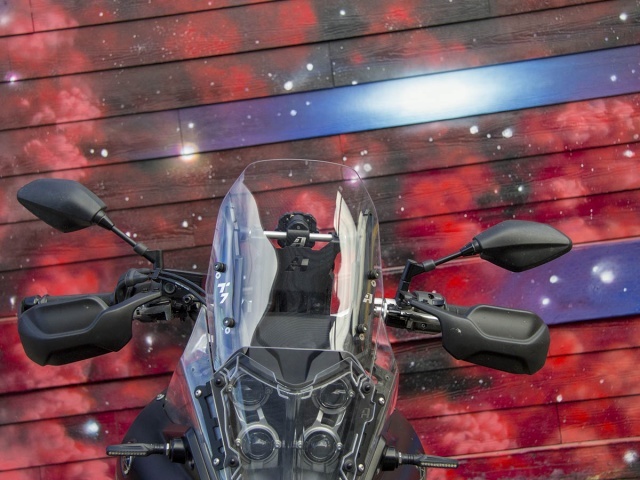

- Compatible with AltRider Yamaha Tenere 700 Cowl Support
Note: Mounting from the rear of the adapter plate is not possible, so this product is not compatible with TomTom mounts without modification.
